Models

Spirit of Mobility

The ARBOC Spirit of Mobility provides a single, non-discriminatory patented angled and accessible entranceway.

Overview

Ford Chassis

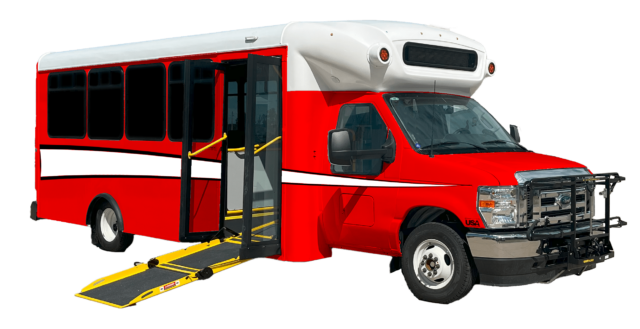

Now available on the Ford E450 cutaway chassis, ARBOC’s low-floor Spirit of Mobility provides a single fully accessible 39” entranceway featuring a bi-fold ramp. The full air-ride suspension extends a kneeling feature, allowing for a 1:6 ramp slope and an entrance of less than 5” from the curb without deploying the ramp.The spacious interior presents easy maneuverability and theater seating that provides premium viewing for all riders. The 21-passenger and 6-wheelchair capacity makes the Spirit of Mobility an excellent option for demand-response service or fixed routes that have no need for a heavy-duty bus.

Floorplans

26', 13+8 Passengers, 2 w/c

Specifications

Chassis

  • + Ford E450 with GVWR 14,500
  • + Transmission: 6-Speed Automatic
  • + Park Brake: Internal Rear Disc
  • + Battery: Dual Batteries
  • + Hour Meter
  • + Gasoline Fuel Tank: 55 Gallons/ CNG Tank: 48GGE w/ Rear Vertical Tanks/Propane Tank: 64 Gallons
  • + Doors: Driver Side Only
  • + Visor: Driver Side Only
  • + Radio: Radio Provisions Only
  • + Low Oil Pressure Light
  • + Daytime Running Lights
  • + Full Air Ride Suspension w/ Kneeling Electronic Control
  • + 12V Electric Air Suspension Compressor System
  • + Steel Rear Bumper Painted Black
  • + Rear Tow Hooks
  • + Engine: 7.3L Gasoline
  • + Brakes: Heavy Duty Disc Brakes with four-wheel ABS
  • + Alternator: 225 Amp
  • + Fast Idle
  • + Tires: LT225/75RX16E on White Steel Rims
  • + 50 State Emissions
  • + Air Bag: Driver Side Only
  • + Horn: Dual Note Tone
  • + Power Ports: 12-Volt Outlet
  • + Driver Dome Light
  • + Factory Dash A/C, Defroster and Heat
  • + Driver Side Running Board
  • + Front & Rear Mud Flaps
  • + Exhaust Streetside Rear

Base Models

  • + SOM-F 26’ - 208” WB/26’ Overall Length

        Construction

        • + All Tubular Steel Cage Construction
        • + Full Laminated Body
        • + Body Height: 108” (does not include roof hatch or AC)
        • + Wheelchair Capacity: up to 6
        • + Altoona Tested- 7 Years/200,000 Miles
          • + Bolt & Bonded Construction
          • + Body Width: 100” (does not include mirrors)
          • + Seating Capacity: Theater Seating up to 21
          • + 5/8" Wood Floor
          • + Meets all applicable FMVSS Regulations

            Electrical

            • + Multiplex 12V Electrical System
            • + Exterior Door Toggle Switch
            • + Interior Passenger Lights “ON” with door
            • + Master Battery Disconnect Switch
              • + Ramp Activation System (Includes: Exterior Ramp Toggle Switch)
              • + Driver Switch Panel in Driver’s Console
              • + Auxiliary Battery Compartment w/Tray and Door
              • + Backup Alarm

                Exterior Body & Lights

                • + LED Interior/Exterior Lights
                • + Exterior Light at Entry Door - LED
                • + One Piece Exterior FRP Wall/Skirt
                • + Upper Corner Rear ICC Lights - LED
                  • + Rear Center Mounted Brake Light - LED
                  • + Black Rubber Rear Wheel Well Flares
                  • + Flush Mount Front Cap Marker Lights - LED
                  • + Heated/Remote Exterior Mirrors

                    Interior

                    • + Left Hand Stanchion - Stainless Steel
                    • + Entry Assist Handles - Stainless Steel
                    • + Door Header Access Panel
                    • + White Standee Line w/Sign
                      • + Right Hand Stanchion - Stainless Steel
                      • + One-Piece FRP Interior Walls/Ceiling
                      • + Driver’s Console w/Cup Holder

                        Windows & Doors

                        • + Solid Framed Windows
                        • + Electric Outward Opening Entrance Door w/39” Clear Opening (35” w/Handles)
                          • + Egress Window Lights
                          • + Rear Egress Window (24 x 60)
