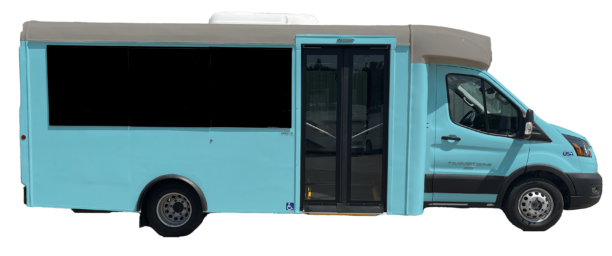

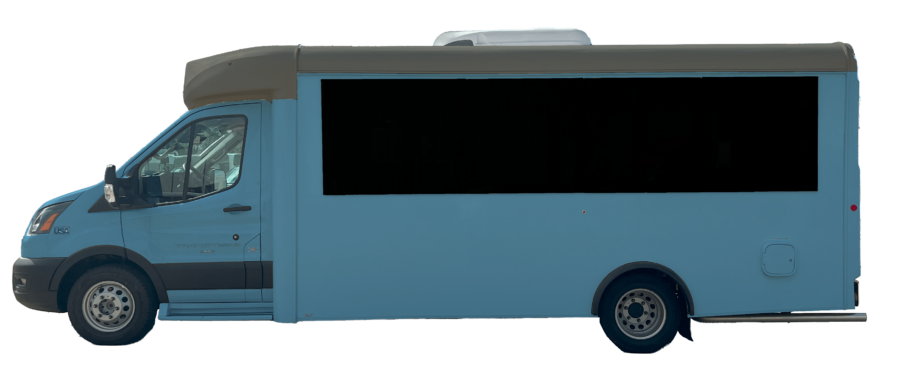

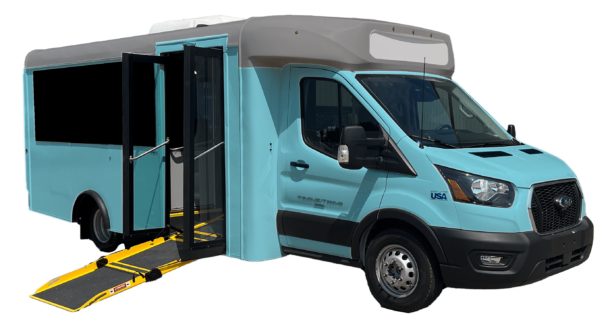

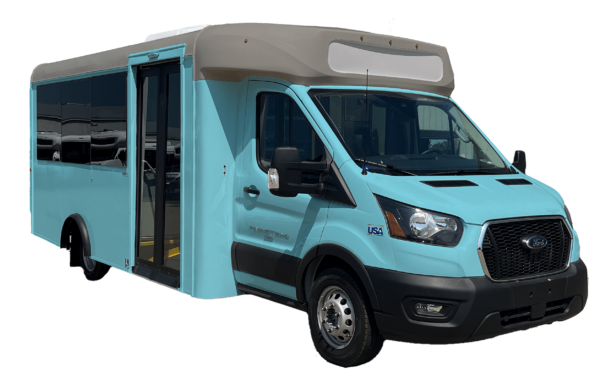

Spirit of Independence

Built on the fuel-efficient Ford Transit chassis, the Spirit of Independence offers a low cost of ownership while maintaining the safety and dependability.

Overview

Ford Transit

Built on the fuel-efficient Ford Transit chassis, the Spirit of Independence (”Independence”) offers a low cost of ownership while maintaining the safety and dependability that is expected from ARBOC. The 96” wide body allows for easy maneuverability inside the vehicle for both ambulatory and wheelchair passengers. With an available passenger capacity of up to 15 ambulatory or five wheelchairs, the Independence is perfect for use as a shuttle, in non-emergency medical transport, for assisted living facilities, or in public transit. Occupants will appreciate the superior headroom, as well as the visibility offered by the large passenger windows.

Floorplans

23', 15 Passengers

23', 12 Passengers or 5 w/c

23', 10+2 Passengers, 2 w/c

23', 4+2 Passengers, 4 w/c

Specifications

Chassis

  • + Chassis: Ford Transit T350 Cutaway
  • + Transmission: 6-Speed Automatic
  • + GVWR Front Axle: 4,630 lbs
  • + Fuel Tank: 25 Gallons
  • + Horn: Dual Note Tone
  • + Power Ports: (2) 12V DC Power Outlets
  • + Driver Dome Light
  • + Alternator: 250 AMP
  • + Engine: 3.5L EcoBoost Gasoline
  • + GVWR Standard: 11,000 lbs
  • + GVWR Rear Axle: 7,275 lbs
  • + Wheel Base: 178”
  • + Tires: 195/75R16 (Dual Rear Wheels)
  • + Daytime Running Lights
  • + Battery: Dual Heavy Duty Batteries

Base Models

  • + SOI-F 23' 178" WB/23'9” Overall Length

        Construction

        • + 5/8" Wood Floor (laminated/edge sealed prior to installation)
        • + Bolt & Bonded Construction
        • + Body Width: 96”
        • + Seating Capacity: up to 15 Passengers
        • + Meets All Applicable FMVSS Regulations
          • + All Tubular Steel Cage Construction
          • + Full Laminated Body
          • + Body Height: 108" (does not include a/c or roof hatch)
          • + Wheel Chair Capacity: up to 5
          • + Altoona Tested 4 Yrs/100,000 Miles

            Exterior Body & Lights

            • + Rear Center Mounted Brake Light -LED
            • + Black Rubber Rear Wheel Well Flares
            • + LED Exterior lights
            • + Exterior Door & Ramp Toggle Switches
              • + Exterior Light at Entry Door - LED
              • + One Piece Exterior FRP Walls/Roof
              • + Driver Side Running Board
              • + OEM Heated/Remote Mirrors

                Windows & Doors

                • + Solid Framed Windows
                • + Electric Outward Opening Entrance Door w/39” Clear Opening (35” w/Handles)
                  • + Rear Egress Window (24 x 60)

                    Electrical

                    • + 12V Electrical Multiplex System
                    • + Backup Alarm
                      • + LED Interior Lights

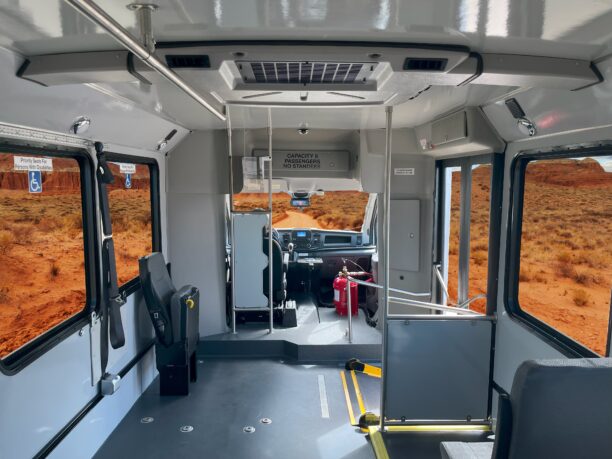

                        Interior

                        • + Right Hand Stanchion - Stainless Steel
                        • + Entry Assist Handles - Stainless Steel
                        • + Door Header Access Panel
                          • + Left Hand Stanchion - Stainless Steel w/ Modesty Panel
                          • + One Piece FRP Interior Walls/Ceiling
                          • + White Standee Line
