Spirit of Freedom

The ARBOC Spirit of Freedom provides a single, non-discriminatory patented angled and accessible entranceway.

Overview

Ford Chassis

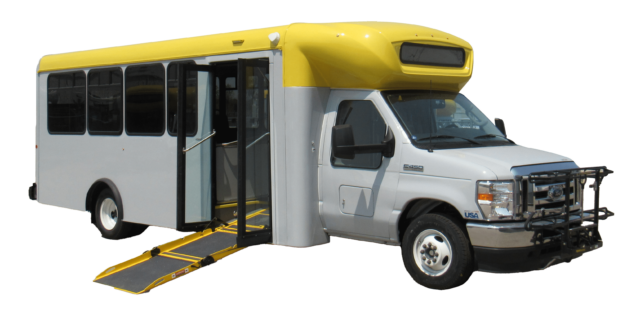

ARBOC’s fully accessible Spirit of Freedom is now available on the desirable Ford E450 cutaway chassis. The low-floor with spring suspension provides a single 39” entranceway featuring a bi-fold ramp with a gentle slope that is easy to ascend independently, even for those using mobility devices. The interior offers ample space for wheelchair maneuverability and the theater seating provides premium viewing for all riders. The passenger capacity of 21 seated and 6 wheelchairs makes the Spirit of Freedom an excellent option for demand-response service or fixed routes that have no need for a large heavy-duty bus.

Floorplans

27', 14+6 Passengers, 2 w/c

27', 12+6 Passengers, 3 w/c

Specifications

Chassis

  • + Ford E450 with GVWR 14,500
  • + Transmission: 6-Speed Automatic
  • + Park Brake: Internal Rear Disc
  • + Battery: Dual Batteries
  • + Hour Meter
  • + Gasoline Fuel Tank: 55 Gallons/ CNG Tank: 48GGE w/ Rear Vertical Tanks/Propane Tank: 41 Gallons
  • + Doors: Driver Side Only
  • + Horn: Dual Note Tone
  • + Low Oil Pressure Light
  • + Daytime Running Lights
  • + Driver Side Running Board
  • + Steel Rear Bumper Painted Black
  • + Rear Tow Hooks
  • + Engine: 7.3L Gasoline
  • + Brakes: Heavy Duty Disc Brakes with four-wheel ABS
  • + Alternator: 225 Amp
  • + Fast Idle
  • + Tires: LT225/75RX16E on White Steel Rims
  • + 50 State Emissions
  • + Air Bag: Driver Side Only
  • + Power Ports: 12-Volt Outlet
  • + Driver Dome Light
  • + Factory Dash A/C, Defroster and Heat
  • + Front & Rear Mud Flaps
  • + Exhaust Streetside Rear

Base Models

  • + SOF-F 27’ - 208” WB/27’ 4” Overall Length

        Construction

        • + All Tubular Steel Cage Construction
        • + Full Laminated Body
        • + Body Height: 108” (does not include roof hatch or AC)
        • + Wheelchair Capacity: up to 6
        • + Meets all applicable FMVSS Regulations
          • + Bolt & Bonded Construction
          • + Body Width: 100” (does not include mirrors)
          • + Seating Capacity: up to 21
          • + 5/8" Wood Floor

            Electrical

            • + Multiplex 12V Electrical System
            • + Exterior Door Toggle Switch
            • + Auxiliary Battery Compartment w/Tray and Door
            • + Backup Alarm
              • + Ramp Activation System (Includes: Exterior Ramp Toggle Switch)
              • + Interior Passenger Lights “ON” with door
              • + Master Battery Disconnect Switch

                Exterior Body & Lights

                • + LED Interior/Exterior Lights
                • + Exterior Light at Entry Door - LED
                • + One Piece Exterior FRP Wall/Skirt
                • + Upper Corner Rear ICC Lights - LED
                  • + Rear Center Mounted Brake Light - LED
                  • + Black Rubber Rear Wheel Well Flares
                  • + Flush Mount Front Cap Marker Lights - LED
                  • + Heated/Remote Exterior Mirrors

                    Interior

                    • + Left Hand Stanchion - Stainless Steel
                    • + Entry Assist Handles - Stainless Steel
                    • + Door Header Access Panel
                    • + White Standee Line w/Sign
                      • + Right Hand Stanchion - Stainless Steel
                      • + One-Piece FRP Interior Walls/Ceiling
                      • + Driver’s Console w/Cup Holder

                        Windows & Doors

                        • + Solid Framed Windows
                        • + Rear Egress Window (24 x 60)
                          • + Electric Outward Opening Entrance Door w/39” Clear Opening (35” w/Handles)
